Shandong Xinkaite Bearing Co., Ltd.

Ball Bearing 1309,Bearing For Drum Pulley,Self Aligning Ball Bearing 1309

Home > Products > Conveyor Bearing > Conveyor Drum Pulley Bearing > Self aligning Ball Bearing 1309 For Drum Pulley

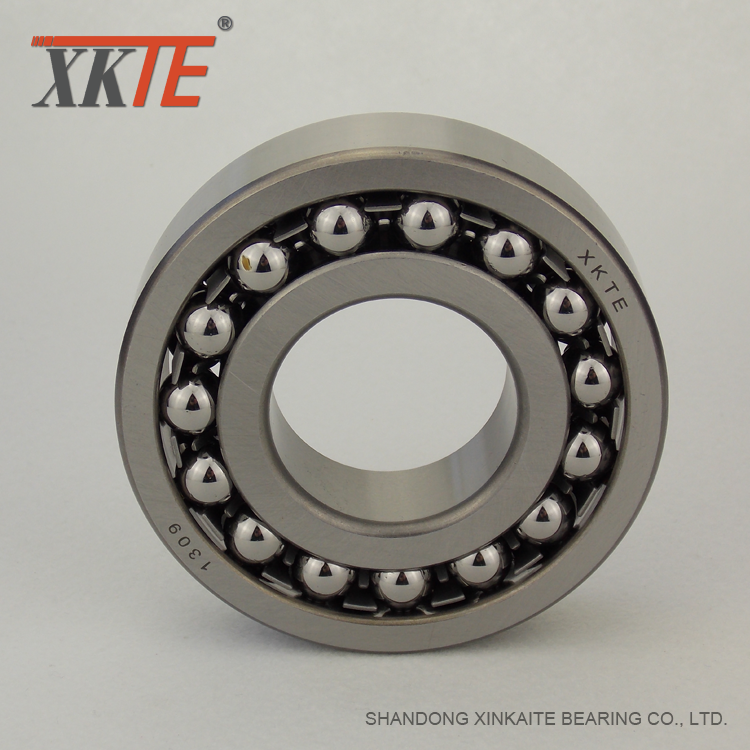

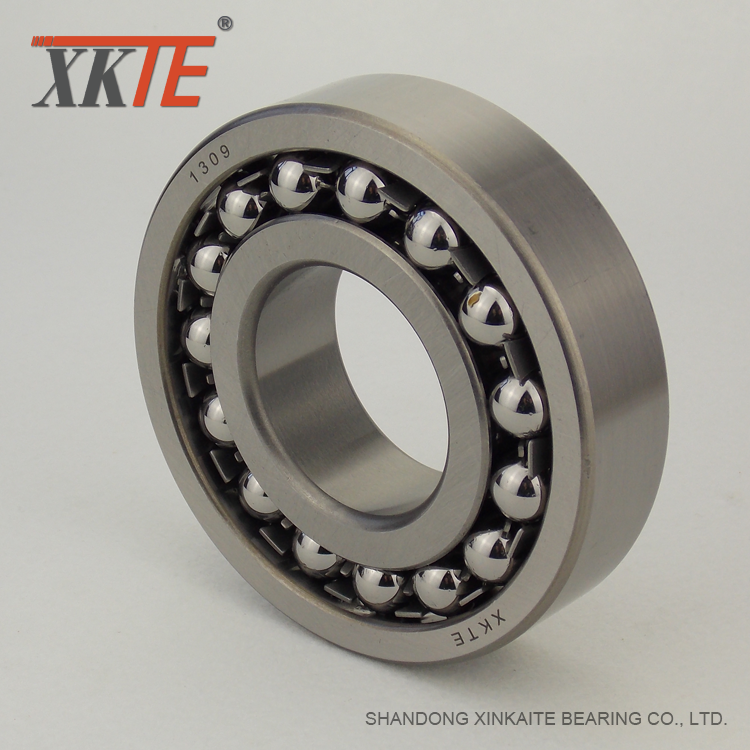

Self aligning Ball Bearing 1309 For Drum Pulley

Share to:
    Payment Type: L/C,T/T,Paypal,Western Union
    Incoterm: FOB,CFR,CIF
    Min. Order: 1 Piece/Pieces
    Delivery Time: 5 Days

Basic Info

Model No.: 1309

Rolling Body: Ball Bearings

The Number of Rows: Double

Outer Dimension: Small and Medium-Sized (60-115mm)

Material: Bearing Steel, Chrome Steel GCr15

Spherical: Aligning Bearings

Load Direction: Radial Bearing

Separated: Unseparated

Application: Conveyor Pulley/industrial Machine

Feature: Long Life

Seals Type: Open

Precision Rating: P0-P6

Cage: Iron

Bore Diameter: 60mm

Width: 31MM

Weight: 1.96kg

Outside Diameter: 130mm

Additional Info

Packaging: 1)Neutral package & wooden package 2)Carton package+pallet 3)Wooden package+pallet 4)As customer request

Productivity: 50000 Pieces/day

Brand: XKTE/OEM

Transportation: Ocean,Land,Air

Place of Origin: Shandong,China

Supply Ability: 50000 Pieces/Day

Certificate: ISO9001:2015

Port: Qingdao,Shenzhen,Guangzhou

Product Description

Double Row Self aligning Ball Bearing 1309 is recommended when the alignment of the Shaft and housing is difficult or when the shaft may bend during operation. The misalignment and/or shaft bending amount should be considered when specifying bearing type. XKTE Specializes in producing rolling bearing for bulk material handling belt conveyor.



Self Aligning Ball Bearing Drawing


Bearing 1309 For Drum Pulley

1309 Ball Bearing

1309 Ball Bearing


Feature

The balls, cage, and inner ring of these bearings are capable of a shifting in order to compensate for a certain degree of misalignment with the outer rings. As a result, the bearing is able to align itself and compensate for shaft / housing finishing unevenness, bearing fitting error, and other sources of misalignment. However, since axial load capacity is limited, self-aligning ball bearings are not suitable for applications with heavy axial loads.
Self Aligning Ball Bearing S

Types:
Retainers are mainly made of steel sheet, synthetic resin, nylon etc. Its feature is the outer ring raceway spherical surface and automatical adjusted, so it can compensate for the deviation caused by different axial angle.

* Nylon Cage ATN Self-aligning Ball Bearing

* Iron Cage Self-aligning Ball Bearing


Main Application
Owning to its specific structure, the self aligning ball bearing can be used in some relative field and some general lines.For example, Self-Aligning Ball Bearing applies to carry heavy load and impact load. Mine machine, port hoisting machine, port transfer equipment.

Professional mass production Bearing For Conveyor, With more than 10 years of Conveyor Bearing experience, we can assist you with selecting the appropriate bearings for your system. Welcome to visit our Factory. If you have any questions, please contact with us directly.


Special: XKTE - Ball Bearings and Rolling Bearings in Conveyor Technology
XKTE is the specialist in rolling bearing technology for the mechanical application of continuous conveyors.

Whether bulk or general cargo conveyor, we have the right solutions for your requirements. Application-optimized rolling bearings from XKTE master all challenges: Heavily different temperatures, moisture, dust, dirt, as well as noise and vibration reduction.
Bend Pulley Conveyor

Self-aligning Ball bearings used for light type pulley while Spherical Roller Bearing are available with heavy duty rollers and cages that are suitable for extreme demand harsh applications such as vibratory screens.


Self-aligning Ball bearing Models

self-aligning ball bearing

Model

Bore Size(mm)

Outer Diameter(mm)

High(mm)

Cr (kN)

Cor (kN)

Weight(kg)

1308

40

90

23

29.5

9.7

0.715

1309

45

100

25

38.1

12.7

0.957

1310

50

110

27

43.4

14.1

1.21

1311

55

120

29

51.3

17.9

1.58

1312

60

130

31

57.2

20.8

1.96

1313

65

140

33

61.7

22.9

2.45

1314

70

150

35

74

27.7

2.99

1315

75

160

37

78.9

29.9

3.56

1316

80

170

39

88.1

33.1

4.18

Iron and nylon(ATN)two types of retainer

About US:

Shandong Xinkaite Bearing Co., Ltd. is a professional belt Conveyor Roller Bearing manufacturer enterprise, specialized in manufacturing bearings for the bulk material handling industry and supply all kinds of Conveyor Idler Components. our bearings are being used in multiple applications including: mining machinery, carrying idlers and reverse rollers as well as drum pulley. Our factory is located in Yandian of Liaocheng in mainland China, covered an area of 18,000 square meters, registered trademarks "XKTE".


And there are many long-term fixed partners of ours within the areas centered by Conveyor Roller bearing industry. With our company`s gradually growing, from the rough to the bearing, we set up a one-stop production line, with 50000 pieces produced every day on our automated production lines. all products are manufactured according to GB standards or in compliance with your specific requirements.

Factory New


Our Service:

1. Volume production and large Inventories, stable quality

2. OEM is supported

3. Small order accept

4. Various Brands

5. Wide Array of Applications

6. Fast delivery

7. Our company insists on the "quality first, credit first" business ideas and our product specification is well-founded. We have a good reputation in the international market by our perfect service and sufficient supply.

Packing


Packing New

Looking for ideal Ball Bearing 1309 Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Bearing For Drum Pulley are quality guaranteed. We are China Origin Factory of Self Aligning Ball Bearing 1309. If you have any question, please feel free to contact us.
