Mineral Belt Conveyor Guide Idlers Spare Parts

Share to:
    Payment Type: L/C,T/T,Paypal,Western Union
    Incoterm: FOB,CFR,CIF
    Min. Order: 1 Piece/Pieces
    Delivery Time: 7 Days

Basic Info

Model No.: TD75 DTII

Model Number: TD75 DTII

Roller Material: Seamless Roller Pipe,welded Roller Pipe

Roller Bearing: Ball Bearing 6204

Type: Training, Aligning, Side, Vertical, Guide

Roller Length: 150mm ~ 600 Mm

Place Of Origin: Shandong,China

Shaft: 1) Material : A3 / 45# Steel Equal To DIN C45 2)

Additional Info

Packaging: 1)Neutral package & wooden package 2)Carton package+pallet 3)Wooden package+pallet 4)As customer request

Productivity: 50000 Pieces/day

Brand: XKTE/OEM

Transportation: Ocean,Land,Air

Place of Origin: Shandong, China

Supply Ability: 50000 Pieces/Day

Certificate: ISO9001

Port: Qingdao,Shenzhen,Guangzhou

Product Description

Belt Side Guide Idlers are also called track-guiding idlers, stub idlers, snub idlers, limiting idlers or lateral guide idlers. they are contact with the edge of the idler Roller belt and designed to prevent belts from tracking off. They consist of shell, Shaft , bearing, bearing house, seals and axial clip etc. and the most important component is bearing, all of our products are made of chrome steel GCr15, reinforced cage and thick rings, good anti sticking performance in dusty environment.

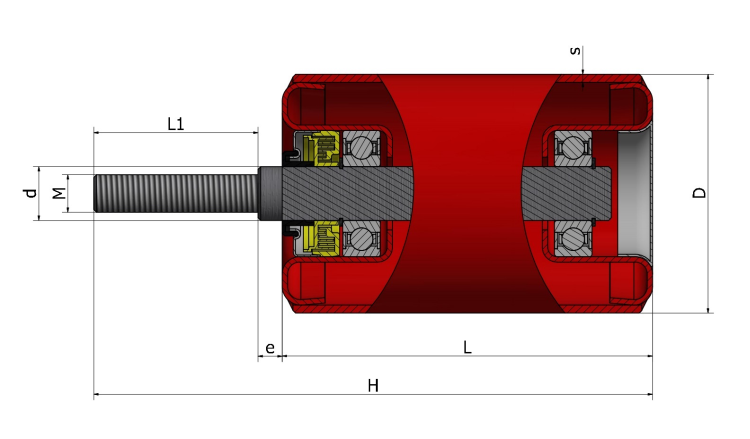

Guide Idler Structure


Guide Idler Group


Guide Idler Picture

Size:

Description

89mm Bulk Material Belt Conveyor Side Guide Idler

Type

Training, aligning, side, vertical, guide

Pipe / tube

1) Material : Q235 carbon steel equal to DIN S235JR

2) Diameter : 89 mm

3) Length: 150mm ~ 600 mm

4) Thickness : 1.0 ~4.5 mm

5) with steel end caps

Type conveyor

DTII DTII(A) TD75

Shaft / axis

1) Material : A3 / 45# steel equal to DIN C45

2) Diameter: 20 mm

Bearing

1) Type : Deep Groove Ball Bearing with C3/C4

2) Size: 6204

3) Brand: HRB LYC ZWZ SKF XKTE

4) Stamped bearing and Stamped Bearing Housing

Seals

1) Multiple labyrinth water proof dust proof

2) Type: DTII / TR made of nylon, methanal

3) Grease : Lithium grease lubricant

Welding

Automatic double end weld bearing housing

Surface

Electric static spraying painting

Color

Red, blue, yellow or as require

Certificate

ISO9001 MA

Application

Used in coal mine, cement plant, metallurgy and so on

Service life

More than 30,000 hours


Features:

a. the conveyor belt idler roller is electric spray paint in yellow, red, blue color or as require.

b. steel guide Roller Bearing type is Single Row Deep Groove Ball Bearing ZZ, 2RS, 2RZ.

c. the seal of conveyor belt roller is DTII or TR made by nylon or methanal


Application Fields:
1.Chemical Industry
2.Fertilizer, Salt, Sugar, Pulp Paper, Acid and Alkaline, etc.
3.General Industry
4.Coal Mining, Cement, Concrete, Limestone and Quarry, etc.
5.Operating Condition
6.Port and logistics


Special: XKTE - Ball Bearings and Rolling Bearings in Conveyor Technology

XKTE is the specialist in rolling bearing technology for the mechanical application of continuous conveyors.

Whether bulk or general cargo conveyor, we have the right solutions for your requirements. Application-optimized rolling bearings from XKTE master all challenges: Heavily different temperatures, moisture, dust, dirt, as well as noise and vibration reduction.

Conveyor


For idler roller:

Unique Design Seize-Resistant Deep Groove Ball Bearings: 6200 series-6300 series

1. KA/TN/TN9 nylon retainer Type

2. Open Type

3. Sealed Type

4. CSK series One Way Clutch Bearing

Open Deep Groove Ball Bearing FeatureFeature Of Nylon Cage Bearing



Other Main Products for idler:

6200/6300 series deep groove ball bearing

6200/6300 series ball bearings are well suited for low to heavy radial loads and can be configured for various application speeds and running precision requirements. Reinforced iron Retainer, Super-finished deep groove, smooth race, thicker inner and outer ring.

6200/6300 Series Deep Groove Ball Bearing

Model

Bore Size(mm)

Outer Diameter(mm)

High(mm)

Weight(kg)

ball no.

Cr(kN)

Cor(kN)

6204

20

47

14

0.106

8

12.8

6.65

6205

25

52

15

0.128

9

14

7.85

6305

25

62

17

0.232

7

20.6

11.3

6306

30

72

19

0.346

8

26.7

15

6307

35

80

21

0.457

8

33.4

19.3

6308

40

90

23

0.639

8

40.8

24

6309

45

100

25

0.837

8

52.8

31.8

6310

50

110

27

1.082

8

61.8

38

Material Chrome Steel GCr15


We will consider all the applicable variables in your application, such as extreme temperature variation, dust and dirt, as well as noise and vibration requirements. Professional Conveyor Bearing Manufacturer for Conveyor Idler Roller, Impact Idler , Troughing Idler and pulley bearing for Bend Pulley , drive pulley etc.


About US:

Shandong Xinkaite Bearing Co., Ltd. is a professional belt Conveyor Roller Bearing manufacturer enterprise, specialized in manufacturing bearings for the bulk material handling industry and supply all kinds of Conveyor Idler Components. our bearings are being used in multiple applications including: mining machinery, carrying idlers and reverse rollers as well as drum pulley. Our factory is located in Yandian of Liaocheng in mainland China, covered an area of 18,000 square meters, registered trademarks "XKTE".


And there are many long-term fixed partners of ours within the areas centered by Conveyor Roller bearing industry. With our company`s gradually growing, from the rough to the bearing, we set up a one-stop production line, with 50000 pieces produced every day on our automated production lines. all products are manufactured according to GB standards or in compliance with your specific requirements.

Factory New


Our Service:

1. Volume production and large Inventories, stable quality

2. OEM is supported

3. Small order accept

4. Various Brands

5. Wide Array of Applications

6. Fast delivery

7. Our company insists on the "quality first, credit first" business ideas and our product specification is well-founded. We have a good reputation in the international market by our perfect service and sufficient supply.

Packing


Packing New

Looking for ideal Mineral Belt Conveyor Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Guide Idlers Spare Parts are quality guaranteed. We are China Origin Factory of Mineral Conveyor Spare Parts. If you have any question, please feel free to contact us.
