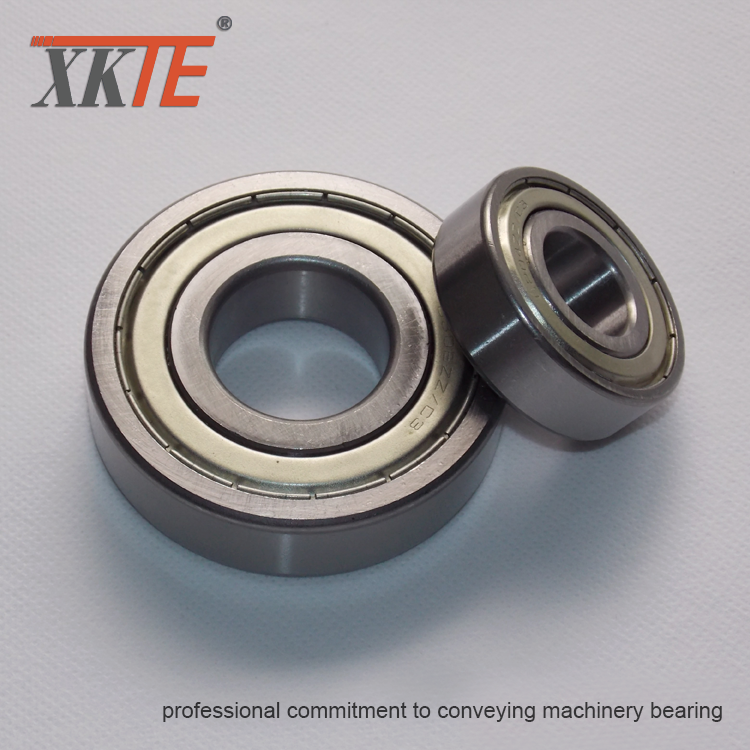

Troughing Conveyor Bearing,Mining Troughing Conveyor,Mining Conveyor Bearing
Model No.: 6204-6310
Aligning: Non-Aligning Bearing
Rows Number: Single
Load Direction: Radial Bearing
Material: Bearing Steel, Chrome Steel GCr15
Precision Rating: P0 P6 P5 P4
Sealed Type: Open
Lubrication: Great Wall Grease(SINOPEC) Four Seasons General
Bore Diameter: 20mm-50mm
Outside Diameter: 47mm-110mm
Packaging: 1)Neutral package & wooden package 2)Carton package+pallet 3)Wooden package+pallet 4)As customer request
Productivity: 50000 Pieces/day
Place of Origin: Shandong,China
Supply Ability: 50000 Pieces/Day
HS Code: 8482102000
Troughing Conveyor Bearing is Deep Groove Ball Bearing used for bulk material handling belt Conveyor Idler Roller, Shandong Xinkaite Bearing specializes in producing bearing for mining conveyor, reinforced unique design and good anti seizing properties in dusty environment.
The most important part of Conveyor Idler is bearing. It is unique design deep groove ball Bearing For Conveyor Idler Roller that meet all challenges: extremely different temperatures, low-speed, bulk materials handling, humidity, dust, dirt, as well as noise and vibration environments.
Open Type Deep groove ball bearings have internal clearance. This provides the bearing room for expansion between the bearing races and will add a small amount of play between the two rings. Large clearance C3/C4 usually used in harsh environment. with good anti-seize performance used in particularly harsh environment.
The standard version of our single-row deep groove ball bearings has the tolerance class P0
(designs with tighter tolerances available upon request)
Conveyor Idler Bearing usually need large Clearance such as C3/C4, Reinforce iron retainer or unique nylon retainer(superior anti-static and anti-sticking) and inner/Outer rings, Sealed type, with good anti-sticking performance. While cannot use standard Bearing, they will cause big running resistance, brake and reduce lifetime of bearing.
Feature of our Conveyor Idler Roller Bearing (Unique Design for Mining conveyor parts):
1. Grinding groove and super finished surface technology
2. Thickening inner/outer rings, increases the service life
3. Reinforced Retainer and Stronger Rivet, unique Nylon Retainer Good toughness and strength, good anti-stuck performance, constantly used industy environment and underground environment.
4. Guaranteed by enough quality and quantity grease
5. Good laser engraving
continuous working for more than 30 thousands hours ensured.
Details Of Thick Cage
Super Finished Surface Technology
Dimensions such as the outer and inner diameters and the width are ground to micrometer (one-thousandth of a millimeter) precision, as is the groove, a key internal structure formed between the inner and outer rings in which balls run.
Thicker Inner & Outer Ring
The ring is the main part and the important part of the Idler Roller Bearing. Best idler Roller Bearing has deep groove ball, and large clearance. But deep groove doesn`t mean to dig the channel with a simple way of enlarge the steel ball. The thickness of the bearing is certain, so to get the ball big and the groove deep will shorten service life. Our XKTE bearing uses way of thickening ring to get the standard of deep groove and large clearance, improves the anti-stuck performance, and effectively increases the service life.
Other Main Products for idler:
6200/6300 series deep groove Ball Bearing
6200/6300 series is well suited for low to heavy radial loads and can be configured for various application speeds and running precision requirements. Reinforced iron Retainer, Super-finished deep groove, smooth race, thicker inner and outer ring.
6200/6300 Series Deep Groove Ball Bearing Model Bore Size(mm) Outer Diameter(mm) High(mm) Weight(kg) ball no. Cr(kN) Cor(kN) 6204 20 47 14 0.106 8 12.8 6.65 6205 25 52 15 0.128 9 14 7.85 6305 25 62 17 0.232 7 20.6 11.3 6306 30 72 19 0.346 8 26.7 15 6307 35 80 21 0.457 8 33.4 19.3 6308 40 90 23 0.639 8 40.8 24 6309 45 100 25 0.837 8 52.8 31.8 6310 50 110 27 1.082 8 61.8 38 Material Chrome Steel GCr15
6200/6300 Series Deep Groove Ball Bearing
Material Chrome Steel GCr15
Open type: 6204---6310 6204/C3---6310/C3 6204/C4---6310/C4
Nylon Cage Bearing: 6204KA---6308KA 6204KA/C3---6308KA/C3 6204KA/C4---6308KA/C4
Rubber Sealed bearing: 6204-2RS---6310-2RS 6204-2RZ---6310-2RZ 180204---180308
Shielded Ball Bearing: 60204---60310 6204KA-Z---6308KA-Z 6204TN-Z---6308TN-Z 6204ZZ---6310ZZ
1. Volume production and large Inventories, stable quality
2. OEM is supported
3. Small order accept
4. Various Brands
5. Wide Array of Applications
6. Fast delivery
7. Our company insists on the "quality first, credit first" business ideas and our product specification is well-founded. We have a good reputation in the international market by our perfect service and sufficient supply.
Special: XKTE - Ball Bearings and Rolling Bearings in Conveyor Technology
XKTE is the specialist in rolling bearing technology for the mechanical application of continuous conveyors.
Shandong Xinkaite Bearing Co., Ltd. is a professional belt Conveyor Roller Bearing manufacturer enterprise, specialized in manufacturing bearings for the bulk material handling industry. our bearings are being used in multiple applications including: mining machinery, carrying idlers and reverse rollers as well as drum pulley. Our factory is located in Yandian of Liaocheng in mainland China, covered an area of 18,000 square meters, registered trademarks "XKTE".
To be the first class, to do the best quality, to make users satisfied, to ensure customers relieved, are our enterprise purposes. Welcome bearing dealers` and conveyor idler manufacturers contact from all over the world, and become our partner.
