PA Cage Bearing,Bearing For Mining,Bearing 6205 TN9
Model No.: 6205 TN9
Aligning: Non-Aligning Bearing
Rows Number: Single
Load Direction: Radial Bearing
Material: Chrome Steel GCr15
Bore Diameter: 25mm
Outside Diameter: 52mm
Precision Rating: P0 P6 P5 P4
Lubrication: Great Wall Grease(SINOPEC)
Cage: Reinforced Nylon
Sealed Type: Open
Packaging: 1)Neutral package & wooden package 2)Carton package+pallet 3)Wooden package+pallet 4)As customer request
Productivity: 50000 Pieces/day
Place of Origin: Shandong,China
Supply Ability: 50000 Pieces/Day
HS Code: 8482102000

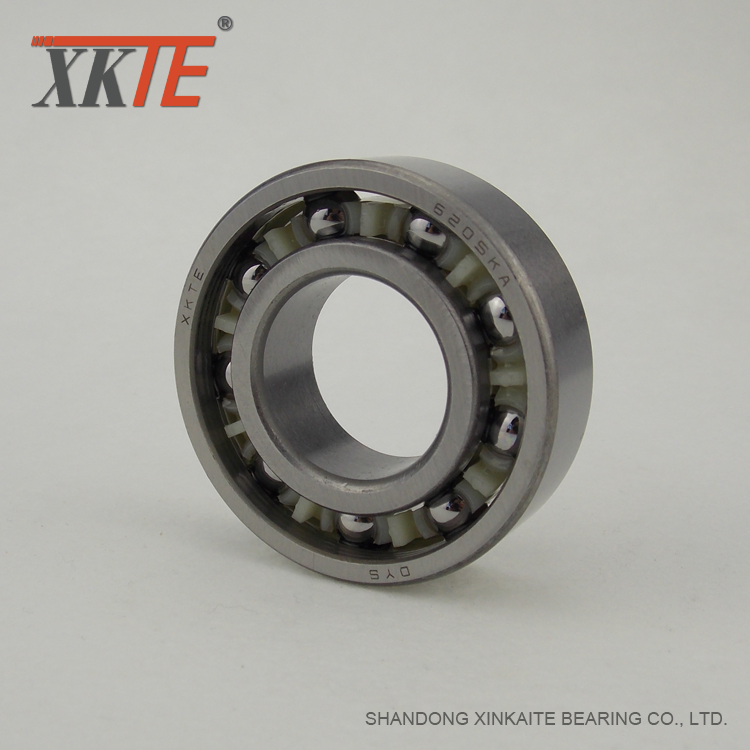

PA cage bearing, also called nylon/Polyamide Cage Bearing. usually used in mining conveyor, and the PA/Nylon cage Deep Groove Ball Bearing used in Conveyor Idler Roller. We produce bearing with large clearance and reinforced cage, which has good anti seizeing and anti static performance than iron cage. PA/Nylon cage bearings are best cost-effective choice for idler Roller .
Bearing For Conveyor Idler usually need large Clearance such as C3/C4, Reinforced nylon retainer(superior anti-static and anti-sticking) and inner/Outer rings, with good anti-sticking performance. While cannot use standard Bearing, they will cause big running resistance, brake and reduce lifetime of bearing.
XKTE - Ball Bearings and Rolling Bearings in Conveyor Technology
specialist in rolling bearing technology for the mechanical application of continuous conveyors.
Special: Our KA(Nylon retainer) series bearings Obtained MA certification, safety certificate of approval for mining products (rollers).
Our Open Nylon cage Ball Bearing :
Bearing Design Characteristic:
1. reinforced nylon retainer, it has good low noise properties and better sliding characteristics
2. very good corrosion resistance
3. a wide temperature range
4. Product tested by National Coal Science Institute and Provincial Quality Inspection Center. mining standard in China.
5. Good toughness and strength, good anti-seize performance, constantly used in dusty environment and underground environment.
The design of Ductile crown structure of retainer can effectively remove stuck dust objects
Grinding Groove and Super Finished Surface Technology
Dimensions such as the outer and inner diameters and the width are ground to micrometer (one-thousandth of a millimeter) precision, as is the groove, a key internal structure formed between the inner and outer rings in which balls run.
Thicker Inner & Outer Ring
The ring is the main part and the important part of the Idler Roller Bearing. Best idler Roller Bearing has deep groove ball, and large clearance. But deep groove doesn`t mean to dig the channel with a simple way of enlarge the steel ball. The thickness of the bearing is certain, so to get the ball big and the groove deep will shorten service life. Our XKTE bearing uses way of thickening ring to get the standard of deep groove and large clearance, improves the anti-stuck performance, and effectively increases the service life.
Other Main Products for idler:
6200/6300 series deep groove ball bearing
6200/6300 series is well suited for low to heavy radial loads and can be configured for various application speeds and running precision requirements. Reinforced iron Retainer, Super-finished deep groove, smooth race, thicker inner and outer ring.
6200/6300 Series Deep Groove Ball Bearing Model Bore Size(mm) Outer Diameter(mm) High(mm) Weight(kg) ball no. Cr(kN) Cor(kN) 6204 20 47 14 0.106 8 12.8 6.65 6205 25 52 15 0.128 9 14 7.85 6305 25 62 17 0.232 7 20.6 11.3 6306 30 72 19 0.346 8 26.7 15 6307 35 80 21 0.457 8 33.4 19.3 6308 40 90 23 0.639 8 40.8 24 6309 45 100 25 0.837 8 52.8 31.8 6310 50 110 27 1.082 8 61.8 38 Material Chrome Steel GCr15
6200/6300 Series Deep Groove Ball Bearing
Material Chrome Steel GCr15
Nylon Cage Bearing: 6204KA---6308KA 6204KA/C3---6308KA/C3 6204KA/C4---6308KA/C4
Rubber Sealed bearing: 6204-2RS/RS---6310-2RS 6204-2RZ---6310-2RZ 180204---180308
Shielded Ball Bearing: 60204---60310 6204KA-Z---6308KA-Z 6204TN-Z---6308TN-Z 6204ZZ---6310ZZ
We will consider all the applicable variables in your application, such as extreme temperature variation, dust and dirt, as well as noise and vibration requirements.
Professional Conveyor Bearing Manufacturer for Conveyor Idler Roller, Impact Idler , Troughing Idler and pulley bearing for Bend Pulley , drive pulley etc.
1. Volume production and large Inventories, stable quality
2. OEM is supported
3. Small order accept
4. Various Brands
5. Wide Array of Applications
6. Fast delivery
7. Our company insists on the "quality first, credit first" business ideas and our product specification is well-founded. We have a good reputation in the international market by our perfect service and sufficient supply.
Shandong Xinkaite Bearing Co., Ltd. is a professional belt Conveyor Roller Bearing manufacturer enterprise, specialized in manufacturing bearings for the bulk material handling industry. our bearings are being used in multiple applications including: mining machinery, carrying idlers and reverse rollers as well as drum pulley. Our factory is located in Yandian of Liaocheng in mainland China, covered an area of 18,000 square meters, registered trademarks "XKTE".
To be the first class, to do the best quality, to make users satisfied, to ensure customers relieved, are our enterprise purposes. Welcome bearing dealers` and conveyor idler manufacturers contact from all over the world, and become our partner.
Looking for ideal PA Cage Bearing Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Bearing For Mining are quality guaranteed. We are China Origin Factory of Bearing 6205 TN9. If you have any question, please feel free to contact us.
