Home > Products > Conveyor Pulley > Snub Pulley > Mining Belt Conveyor Snub Drum Pulley

Mining Belt Conveyor Snub Drum Pulley

Share to:
    Payment Type: L/C,T/T,Paypal,Western Union
    Incoterm: FOB,CFR,CIF,EXW
    Min. Order: 1 Piece/Pieces
    Delivery Time: 7 Days

Basic Info

Material: Iron, Carbon Steel, Rubber Bend Pulleys

Application: Chemical Industry, Mining Transport, Power Plant

Material Feature: Heat Resistant

Bearings: XKTE Spherical Roller Bearing

Diameters: 500, 650, 800, 1000, 1200, 1400mm

Speed: 600r/m

Model Number: TD75,DTII,DTIIA

Shaft Material: Deep Drawn Steel

Type: Belt Conveyor

Belt Width: 500mm-2000mm

Pulley Diameter: 400mm-1640mm

Additional Info

Packaging: 1)Neutral package & wooden package 2)Carton package+pallet 3)Wooden package+pallet 4)As customer request

Brand: XKTE

Transportation: Ocean,Land,Air

Place of Origin: Shandong,China

Certificate: ISO9001:2015

Port: Qingdao,Shenzhen,Guangzhou

Product Description

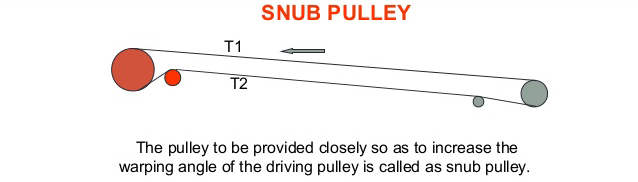

Snub Pulley is provided to change the arc of contact between a belt and a drive pulley. When used in a wrap drive, it has the added function of changing the direction of the return belt travel. The purpose of the snub pulley is to wrap the belt further around the drive pulley to improve the transmission of the driving force, and to eliminate belt slip. Our factory specialized in producing Bearing For Conveyor system, and also provide all kinds of conveyor spare parts.

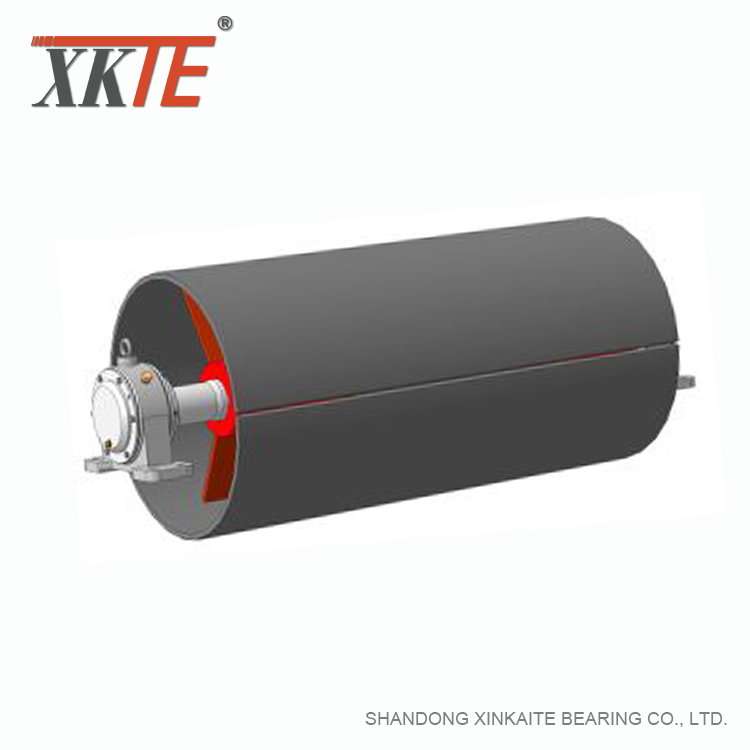

Snub Pulley Drawing

Snub Pulley


Conveyor Snub PulleySnub Pulley


Size:

Belt width

Length

Pulley Diameter

Thickness

300mm

400mm

200 ,250 ,315 ,400 mm

6-12mm

400mm

500mm

200 ,250 ,315 ,400 ,500 mm

6-12mm

500mm

600mm

200 ,250 ,315 ,400 ,500 ,630 mm

7-14mm

650mm

750mm

200 ,250 ,315 ,400 ,500 ,630 ,800 ,1000 , 1250 ,1400 mm

8-18mm

800mm

950mm

200 ,250 ,315 ,400 ,500 ,630 ,800 ,1000 ,1250 ,1400 mm

8-18mm

1000mm

1150mm

200 ,250 ,315 ,400 ,500 ,630 ,800 ,1000 , 1250 ,1400 mm

10-18mm

1200mm

1400mm

200 ,250 ,315 ,400 ,500 ,630 ,800 ,1000 , 1250 ,1400 mm

10-18mm

1400mm

1600mm

200 ,250 ,315 ,400 ,500 ,630 ,800 ,1000 , 1250 ,1400 mm

12-18mm

1600mm

1800mm

200 ,250 ,315 ,400 ,500 ,630 ,800 ,1000 , 1250 ,1400 ,1600 mm

12-20mm

1800mm

2000mm

200 ,250 ,315 ,400 ,500 ,630 ,800 ,1000 , 1250 ,1400 ,1600 mm

12-20mm

2000mm

2200mm

500 ,630 ,800 ,1000 ,1250 ,1400 ,1600 , 1800 mm

14-22mm

2200mm

2500mm

500 ,630 ,800 ,1000 ,1250 ,1400 ,1600 , 1800 mm

14-22mm

2400mm

2800mm

500 ,630 ,800 ,1000 ,1250 ,1400 ,1600 , 1800 mm

16-24mm

2600mm

3000mm

800 ,1000 ,1250 ,1400 ,1600 ,1800 mm

18-26mm

2800mm

3200mm

800 ,1000 ,1250 ,1400 ,1600 ,1800 mm

20-28mm


Special: XKTE - Ball Bearings and Rolling Bearings in Conveyor Technology
XKTE is the specialist in rolling bearing technology for the mechanical application of continuous conveyors.

Whether bulk or general cargo conveyor, we have the right solutions for your requirements. Application-optimized rolling bearings from XKTE master all challenges: Heavily different temperatures, moisture, dust, dirt, as well as noise and vibration reduction.
Bend Pulley Conveyor

Self-aligning Ball bearings used for light type pulley while Spherical Roller Bearing are available with heavy duty rollers and cages that are suitable for extreme demand harsh applications such as vibratory screens.


Spherical Roller Bearing

Series 222.., 223.., 230.., 231.., 232.., 239.. 240.., 241.., CA/CC/W33

Structure Of Conveyor Pulley

Self-aligning Ball Bearing

Owning to its specific structure, the self aligning Ball Bearing can be used in some relative field and some general lines.For example, Self-Aligning Ball Bearing applies to carry heavy load and impact load. Mine machine, port hoisting machine, port transfer equipment.

Main Models:

1308ATN – 1316 ATN Nylon Cage Self-aligning Ball Bearing

Nylon Cage Self Aligning Ball Bearing


About US:

Shandong Xinkaite Bearing Co., Ltd. is a professional belt Conveyor Roller Bearing manufacturer enterprise, specialized in manufacturing bearings for the bulk material handling industry and supply all kinds of Conveyor Idler Components. our bearings are being used in multiple applications including: mining machinery, carrying idlers and reverse rollers as well as drum pulley. Our factory is located in Yandian of Liaocheng in mainland China, covered an area of 18,000 square meters, registered trademarks "XKTE".


And there are many long-term fixed partners of ours within the areas centered by Conveyor Roller bearing industry. With our company`s gradually growing, from the rough to the bearing, we set up a one-stop production line, with 50000 pieces produced every day on our automated production lines. all products are manufactured according to GB standards or in compliance with your specific requirements.

Factory New


Our Service:

1. Volume production and large Inventories, stable quality

2. OEM is supported

3. Small order accept

4. Various Brands

5. Wide Array of Applications

6. Fast delivery

7. Our company insists on the "quality first, credit first" business ideas and our product specification is well-founded. We have a good reputation in the international market by our perfect service and sufficient supply.

Packing


Packing New


Looking for ideal Conveyor Snub Pulley Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Belt Conveyor Snub Pulley are quality guaranteed. We are China Origin Factory of Snub Drum Pulley. If you have any question, please feel free to contact us.

Product Categories : Conveyor Pulley > Snub Pulley
