Bulk Material Handling Conveyor UHMWPE Roller Spare Parts

Share to:
    Payment Type: L/C,T/T,Paypal,Western Union
    Incoterm: FOB,CFR,CIF
    Min. Order: 1 Piece/Pieces
    Delivery Time: 7 Days

Basic Info

Model No.: 6204-6310

Seal: Labyrinth Seal

Standard: Shandong,China

Roller Bearing: Ball Bearing 6204,6205,6305,6306,6307,6308

Rolelr Diameter: 89mm-195mm

Belt Length: 190-3400mm

Bearing Housing: Stamping Iron

Shaft: 20-100mm,

Application: Bulk Material Conveyor

Model Number: TD75 DTII TK

Roller Material: HDPE

Additional Info

Packaging: 1)Neutral package & wooden package 2)Carton package+pallet 3)Wooden package+pallet 4)As customer request

Productivity: 50000 Pieces/day

Brand: XKTE/OEM

Transportation: Ocean,Land,Air

Place of Origin: Shandong, China

Supply Ability: 50000 Pieces/Day

Certificate: ISO9001

Port: Qingdao,Shenzhen,Guangzhou

Product Description

Ultra high molecular polyethylene Roller (UHMW-PE Roller) is an advanced product which is to substitute stainless roller, which has some disadvantages such as heavy, easy to be eroded, easy to stick with transporting material, high static electricity and others. it includes ultrahigh molecular polyethylene pipe which is produced by high technology as its body, bearing seat and seal are fully rubber material made by one-time. Then, they are sealed with three layers of water-proof and dust-proof installation via labyrinth and contact method. it is also equipped in the belt conveyor, which is widely used in coal mines, metallurgy, ports, construction site, power station, and chemical, especially in food and medicine industries.


HDPE-Roller-Idler

Item Description Q'ty
1 Shell 1
2 Bearing Housing 2
3 Shaft 1
4 Inner Snap Ring 2
5 Bearing 2
6 Female Labyrinth Seal 2
7 Male Labyrinth Seal 2
8 Outer Labyrinth Seal 2
9 Outer Snap Ring 2
10 Cover 2

Features
1. Dust-proof, waterproof Features
1. Good lubricity and not bonding, so no bonding and piling up material on the surface of the idler. Guarantee the steady operation of the belt conveyor.
2. Friction coefficient is much lower than steel, reduce the friction between the idler and belt, that reduces the driving force of the belt conveyor.
3. Long working life, is 3~5 times of the steel.
4. Because of the good performance of the UHMW-PE, also extending the working life of the belt conveyor.
5. Light weight which is 1/3~1/2 of the steel weight, conveniently installing and changing, reducing the maintenance and labor intensity and also reducing the 25% electricity.
6. Effectively reducing the operation noise, UHMW-PE has better shock absorbing performance and damping performance.
7. Good load bearing performance and anti-corrosive performance, it can be meet the heavy load of the belt conveyor according to adjusting the thickness
8. Adapt to large scope of the working temperature. ( can work from -40℃ ~ 80℃)

UHMWPE Roller Parts



Bearing.Large clearance C3/C4 serials deep groove ball bearings, reinforced cage with big rivet, thick inner ring and outer ring. usually use double sealed structure to improve the water and dust proof ability.


Unique Design Seize-Resistant Deep Groove Ball Bearings: 6200 series-6300 series

1. KA/TN/TN9 nylon retainer Type

2. Open Type

3. Sealed Type

4. CSK series One Way Clutch Bearing

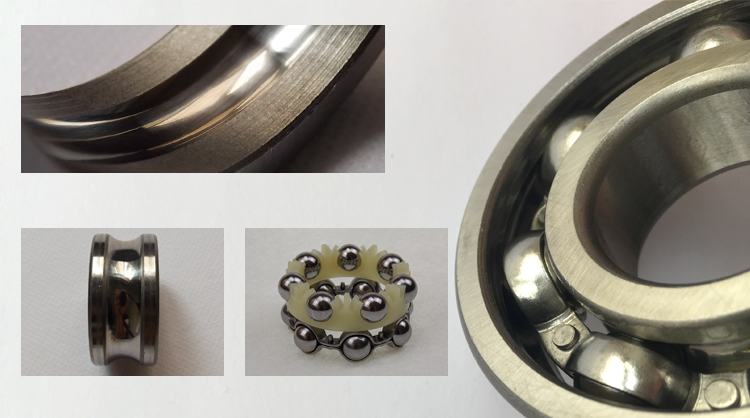

Bearing For Idler Details


3 Bearing For Idler Roller

Other Main Products for idler:

6200/6300 series Deep Groove Ball Bearing

6200/6300 series ball bearings are well suited for low to heavy radial loads and can be configured for various application speeds and running precision requirements. Reinforced iron Retainer, Super-finished deep groove, smooth race, thicker inner and outer ring.


6200/6300 Series Deep Groove Ball Bearing

Model

Bore Size(mm)

Outer Diameter(mm)

High(mm)

Weight(kg)

ball no.

Cr(kN)

Cor(kN)

6204

20

47

14

0.106

8

12.8

6.65

6205

25

52

15

0.128

9

14

7.85

6305

25

62

17

0.232

7

20.6

11.3

6306

30

72

19

0.346

8

26.7

15

6307

35

80

21

0.457

8

33.4

19.3

6308

40

90

23

0.639

8

40.8

24

6309

45

100

25

0.837

8

52.8

31.8

6310

50

110

27

1.082

8

61.8

38

Material Chrome Steel GCr15





Conveyor Idler Roller Size:

Standard Diameter

Standard Inner Diameter(mm)

Length scope(mm)

Bearngs Type

mm

Inch

(Min-Max)

89

3 1/3

60/50

170-3400

6204

102

4

76

170-3400

6204 6205

108

4 1/4

89/76/60

170-3400

6204 6205

114

4 1/2

89/76

170-3400

6204 6205

127

5

89

170-3400

6204 6205

133

5 1/4

89/70/63.5

170-3400

6204 6205

140

4 1/2

89

170-3400

6204 6205

152

6

108/76

170-3400

6204 6205 6206 6305 6306

159

6 1/4

108

170-3400

6204 6205 6206 6305 6306

194

7 5/8

159/133

170-3400

6205 6206 6305 6306 6307 6308

Coal Mining Belt Conveyor

Features:
Support the return belt
Excellent roundness, good dynamic balancing
Smooth operation, easy replacement
Long service life, maintenance-free



Special: XKTE - Ball Bearings and Rolling Bearings in Conveyor Technology

XKTE is the specialist in rolling bearing technology for the mechanical application of continuous conveyors.


Whether bulk or general cargo conveyor, we have the right solutions for your requirements. Application-optimized rolling bearings from XKTE master all challenges: Heavily different temperatures, moisture, dust, dirt, as well as noise and vibration reduction. Application for Guide Rollers, Drop Brackets, Troughing Frames, V-Return Frames, Pulleys, Head Pulley , Tail Pulley , Snub Pulley , Bend Pulley and Spiral.

Bulk Material Handling Belt Conveyor


About US:

Shandong Xinkaite Bearing Co., Ltd. is a professional belt Conveyor Roller Bearing manufacturer enterprise, specialized in manufacturing bearings for the bulk material handling industry and supply all kinds of Conveyor Idler Components. our bearings are being used in multiple applications including: mining machinery, carrying idlers and reverse rollers as well as drum pulley. Our factory is located in Yandian of Liaocheng in mainland China, covered an area of 18,000 square meters, registered trademarks "XKTE".


And there are many long-term fixed partners of ours within the areas centered by Conveyor Roller bearing industry. With our company`s gradually growing, from the rough to the bearing, we set up a one-stop production line, with 50000 pieces produced every day on our automated production lines. all products are manufactured according to GB standards or in compliance with your specific requirements.

Factory New


Our Service:

1. Volume production and large Inventories, stable quality

2. OEM is supported

3. Small order accept

4. Various Brands

5. Wide Array of Applications

6. Fast delivery

7. Our company insists on the "quality first, credit first" business ideas and our product specification is well-founded. We have a good reputation in the international market by our perfect service and sufficient supply.

Packing


Packing New

Looking for ideal UHMWPE Roller Parts Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Conveyor UHMWPE Roller are quality guaranteed. We are China Origin Factory of UHMWPE Roller Spare Parts. If you have any question, please feel free to contact us.
